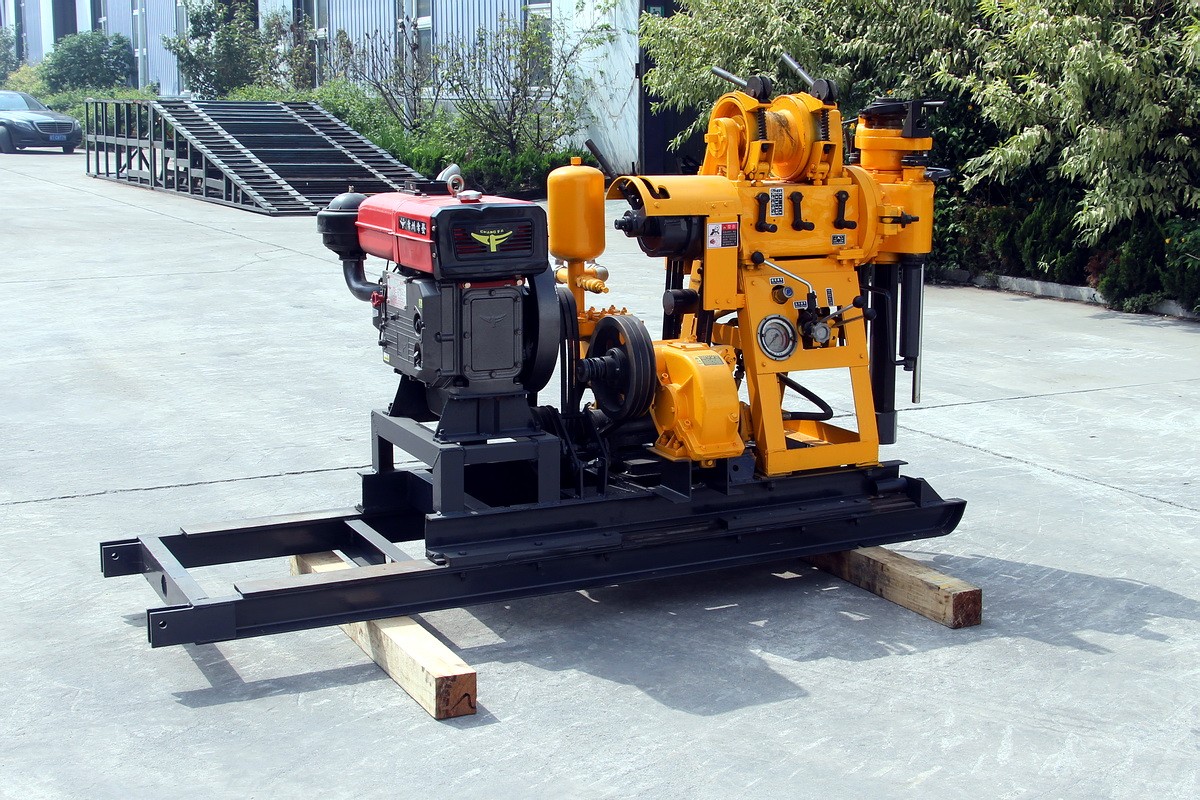

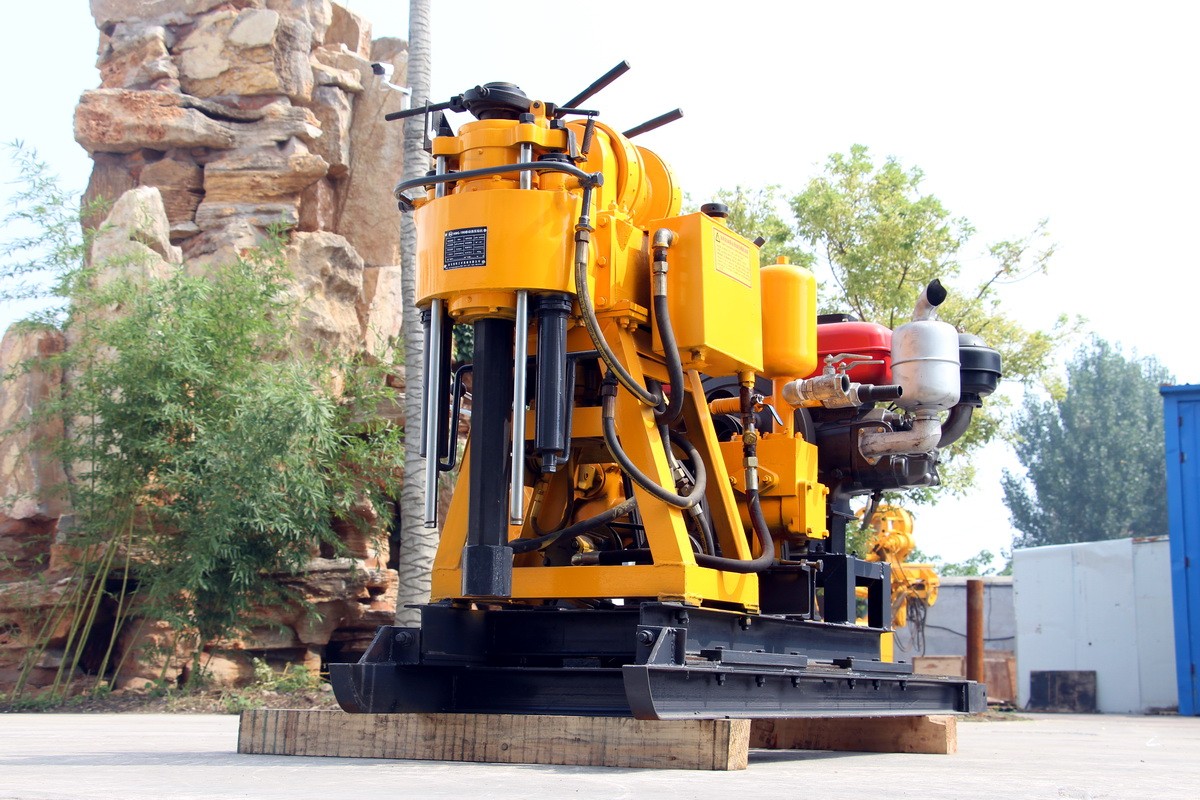

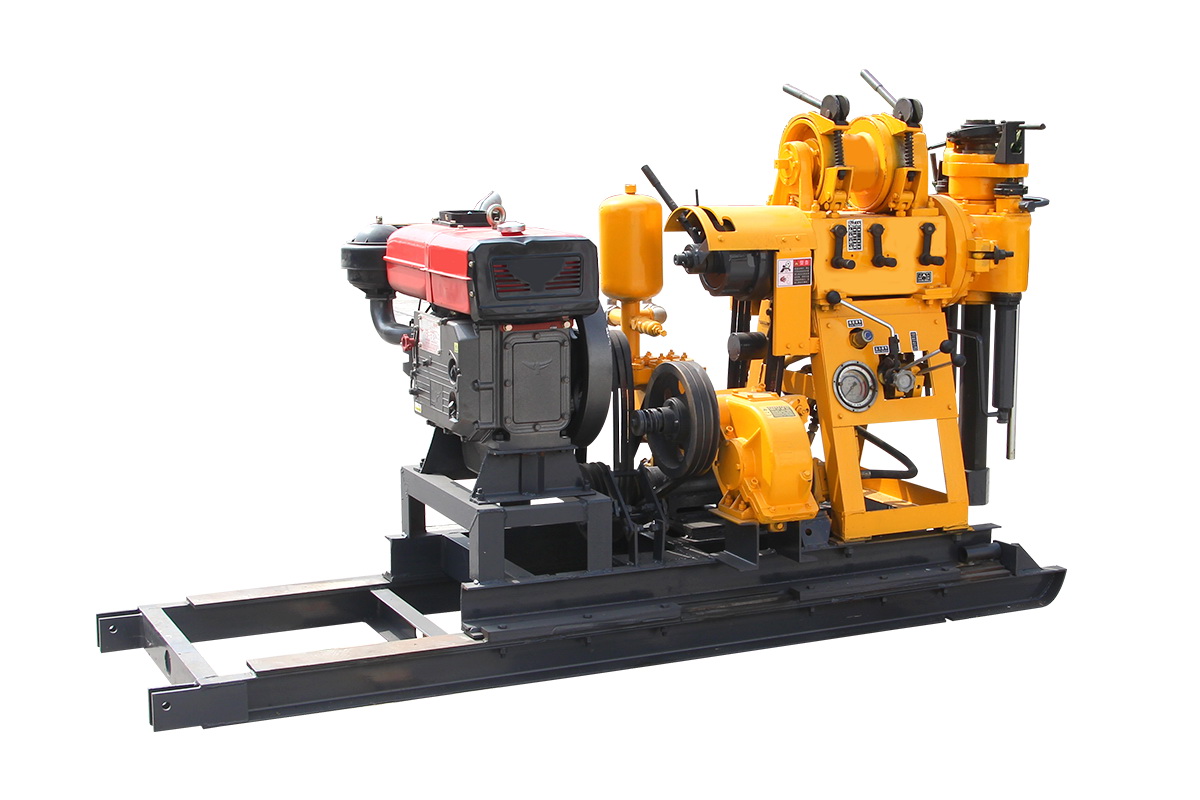

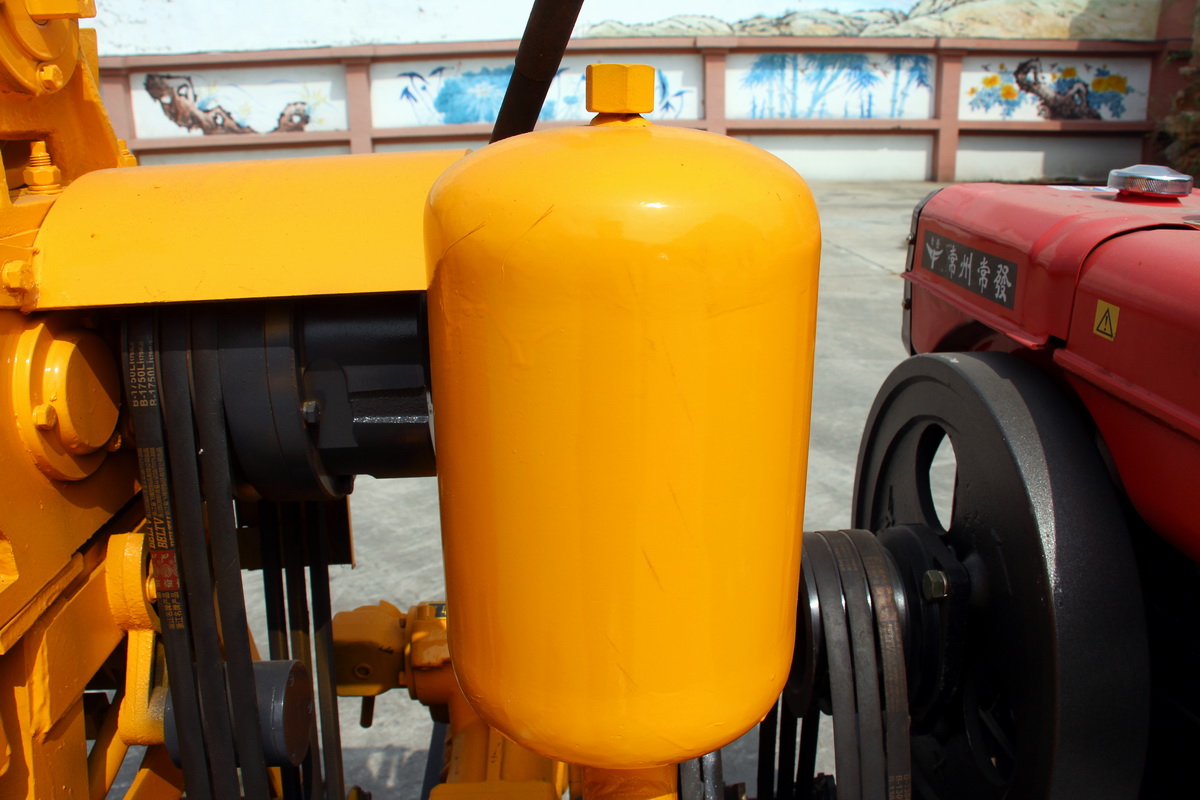

Hydraulic Core Drill Rig
HW-190YY
Drilling depth: 190m Drilling diameter: 75~300mm Power: 15kW
- Drilling depth: 190m
- Drilling diameter: 75~300mm
- Power: 15kW

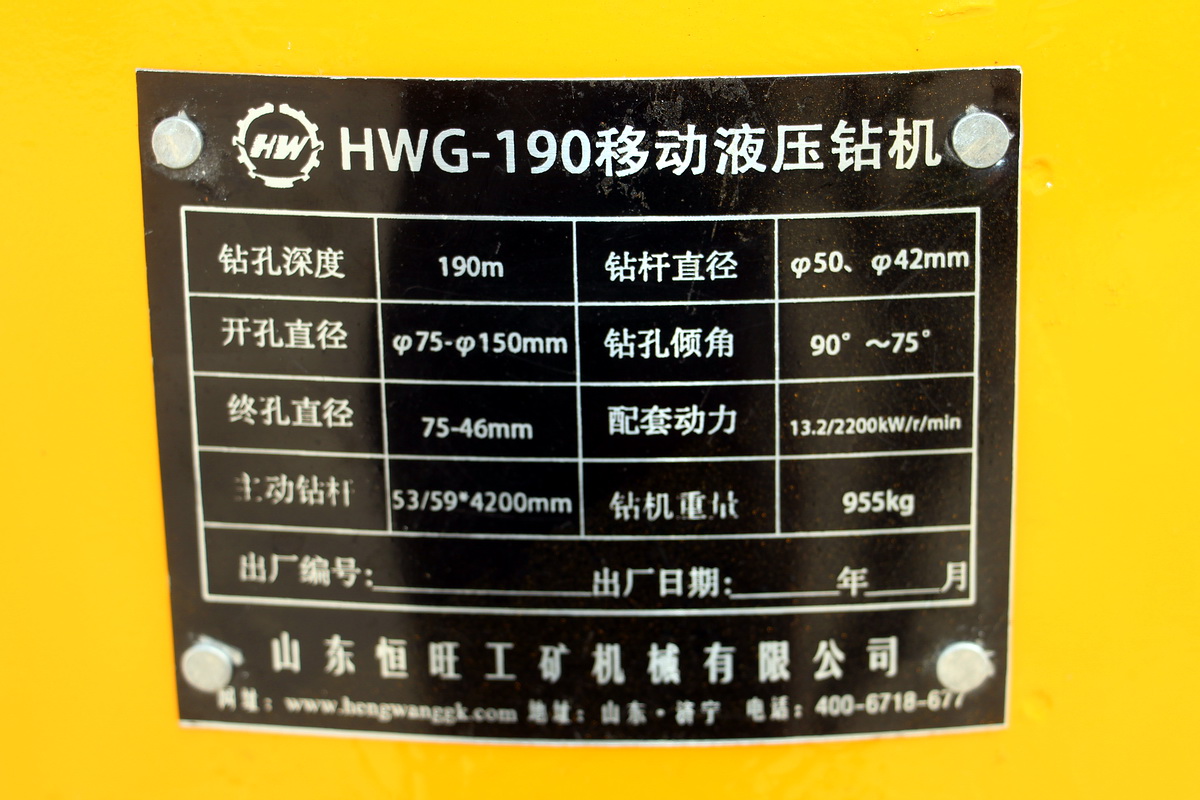

Specifications
- Whole machine parameters
- Model
- Drilling depth (m)
- 190
- Hole diameter (mm)
- 500 (soil)/220 (rock)
- End hole diameter (mm)
- 60
- Drill rod diameter (mm)
- 42/50/60
- Drilling inclination (°)
- 90-75
- Matching power (kW)
- 15
- Weigh (Kg)
- 850
- Drilling rig dimensions Length*Width*Height (L*W*H)
- 3*1.1*1.45

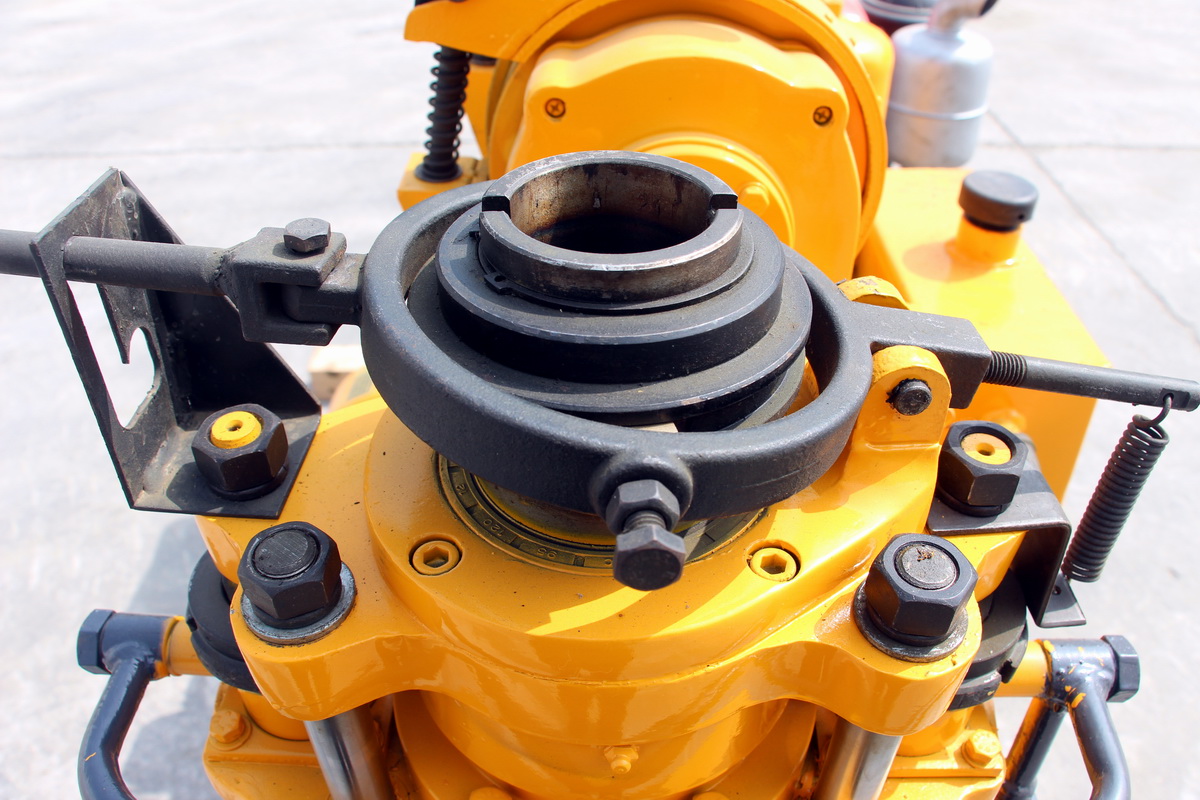

- Vertical shaft
- Vertical shaft rotation speed (r/min)
- Vertical shaft stroke (mm)
- 450

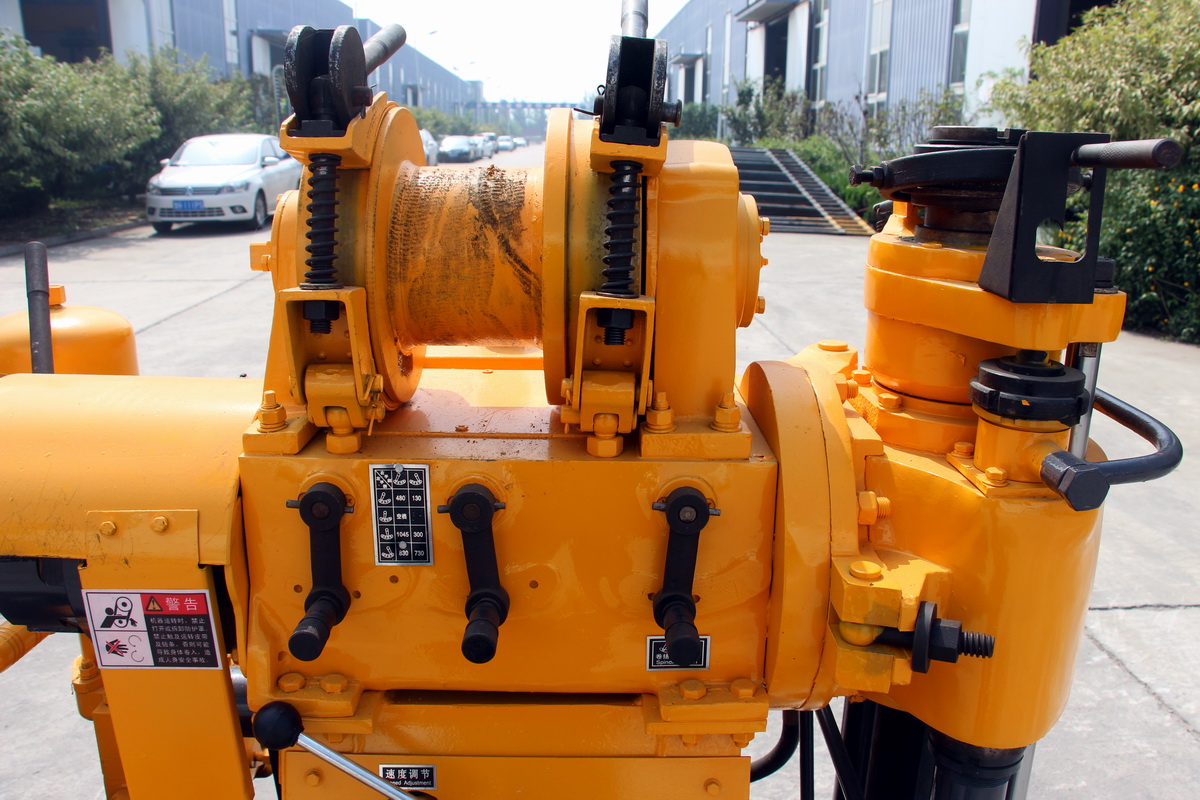

- Hoist
- Single rope hoisting force (kg)
- Single rope hoisting speed (m/s)
- 0.12-1.7
- Wire rope diameter (mm)
- φ9. 5
- Wire rope capacity (m)
- 35
- Drill tower
- Rated load (Ton)
- Effective height (m)
- 6.5

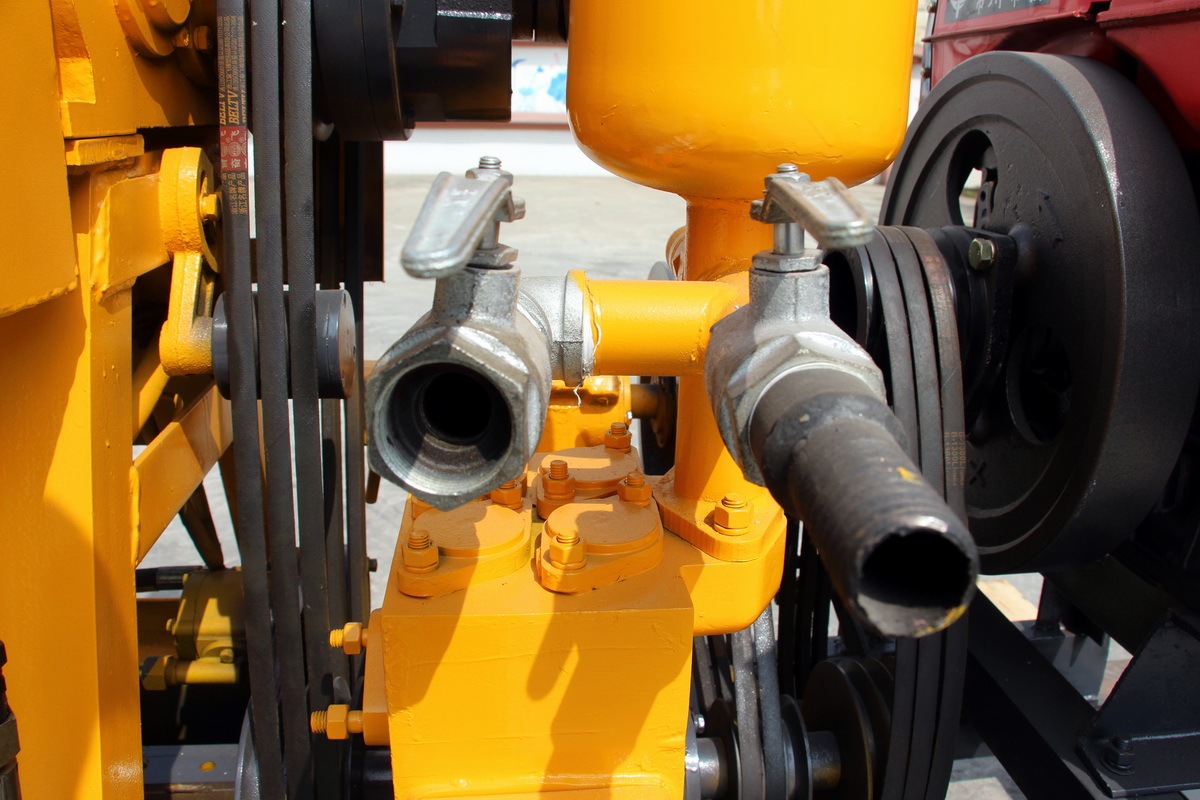

- Mud pump
- Flow rate (L/Min)
- Maximum pressure (MPa)
- 1.5
- Reciprocating frequency (Times/min)
- 93
- Discharge pipe diameter (mm)
- 32
- Optional configurations

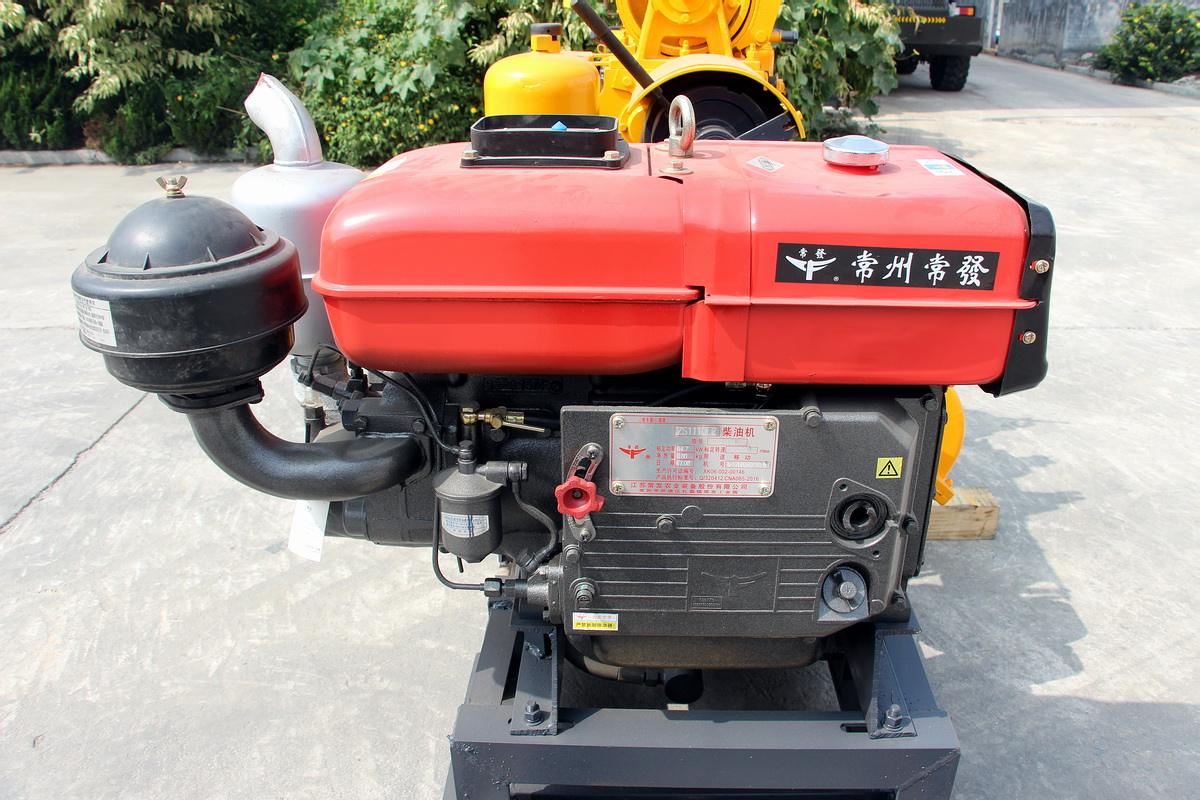

- Motor

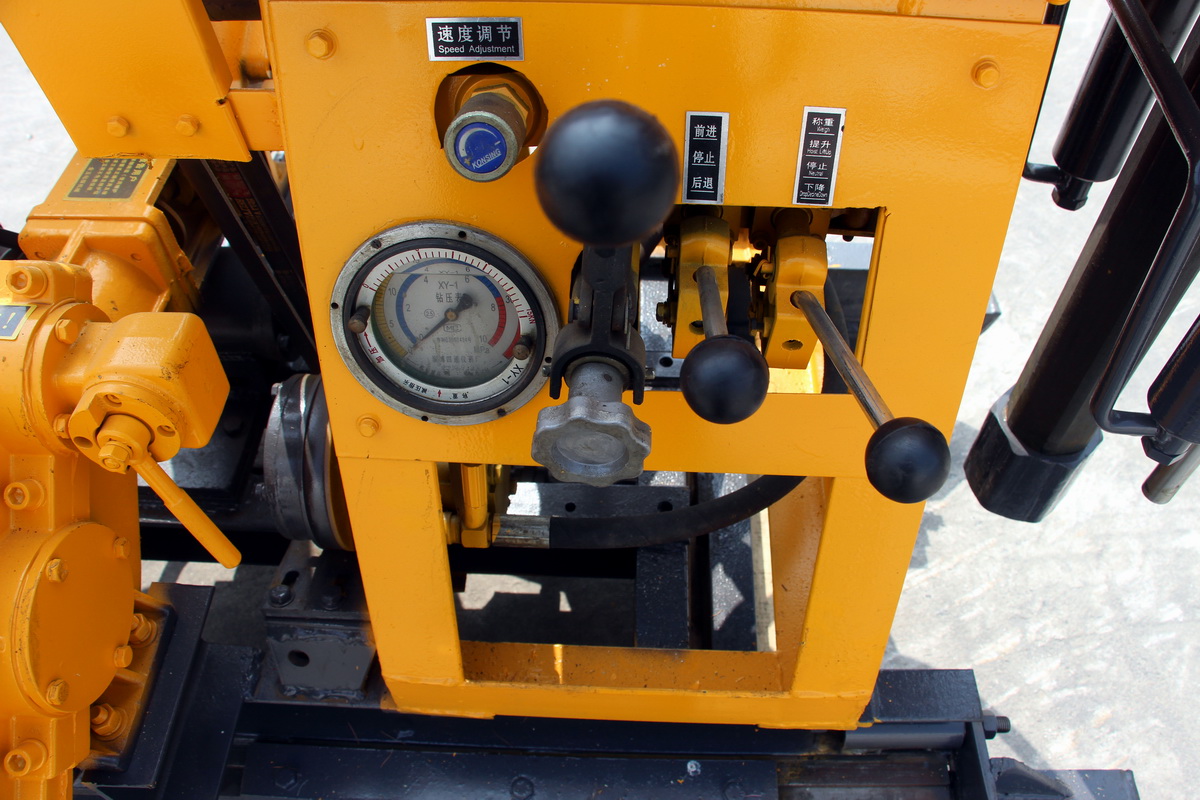

HW Series Hydraulic Drilling Rig is a widely used lightweight drilling machine. It is extensively applied in well drilling for buildings such as railways, water conservancy, bridges, dam foundations, geological exploration, geological core drilling, small grouting holes, and blast holes. The drill bits, such as diamond, composite sheets, and alloys, can be selected based on different geological conditions.Product Features:1. Equipped with a hydraulic automatic feeding mechanism to enhance drilling efficiency and reduce labor intensity.2. Utilizes a ball and card holding mechanism or hydraulic chuck, allowing non-stop rod change for convenient operation.3. Comes with a bottom hole pressure gauge for easy monitoring of the hole conditions.4. Compact structure, centralized handles, small footprint, light weight, strong disassembly capability, and easy relocation.Main Parameters:Whole machine parametersModelHW-190YYDrilling depth (m)190Hole diameter (mm)500 (soil)/220 (rock)End hole diameter (mm)60Drill rod diameter (mm)42/50/60Drilling inclination (°)90-75Matching power (kW)15Weigh (Kg)850Drilling rig dimensions LengthWidthHeight (LWH)31.11.45Vertical shaftVertical shaft rotation speed (r/min)140/295/470/790/1010Vertical shaft stroke (mm)450HoistSingle rope hoisting force (kg)2500Single rope hoisting speed (m/s)0.12-1.7Wire rope diameter (mm)φ9. 5Wire rope capacity (m)35Drill towerRated load (Ton)16Effective height (m)6.5Mud pumpFlow rate (L/Min)160Maximum pressure (MPa)1.5Reciprocating frequency (Times/min)93Suction pipe diameter (mm)51Discharge pipe diameter (mm)32Optional configurationsMotor
