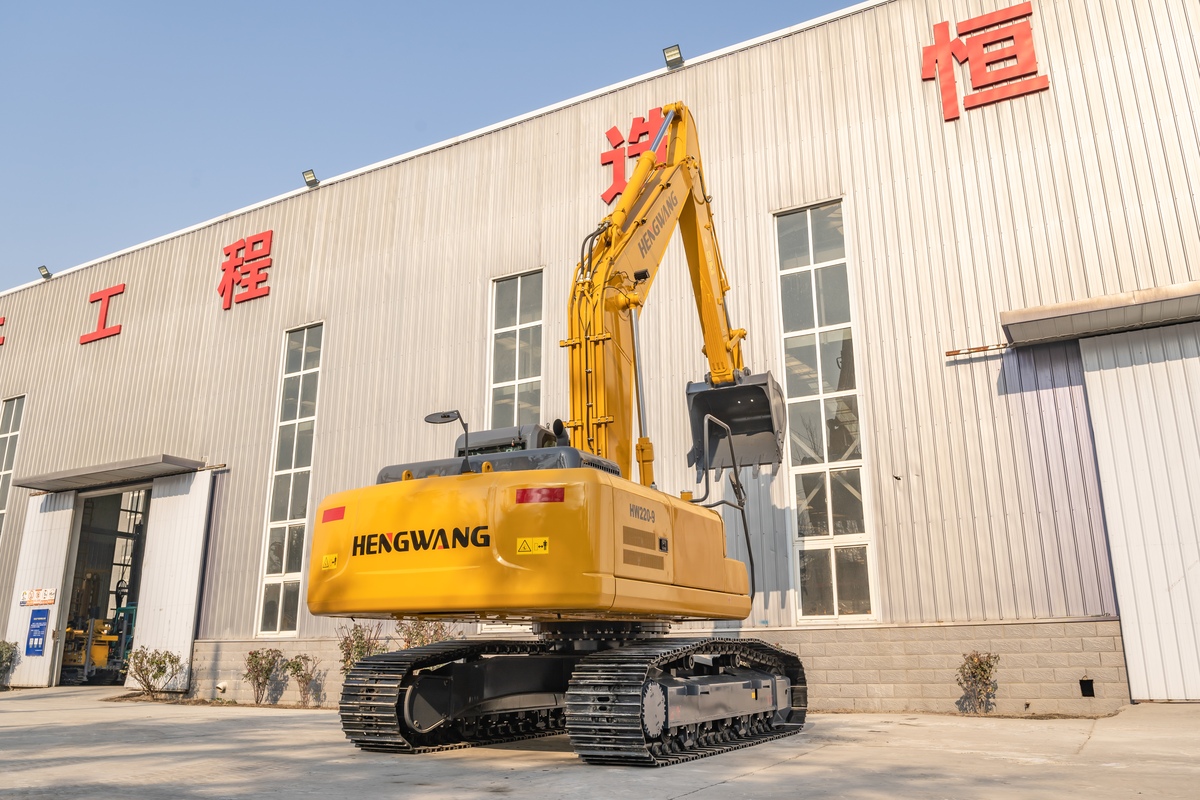

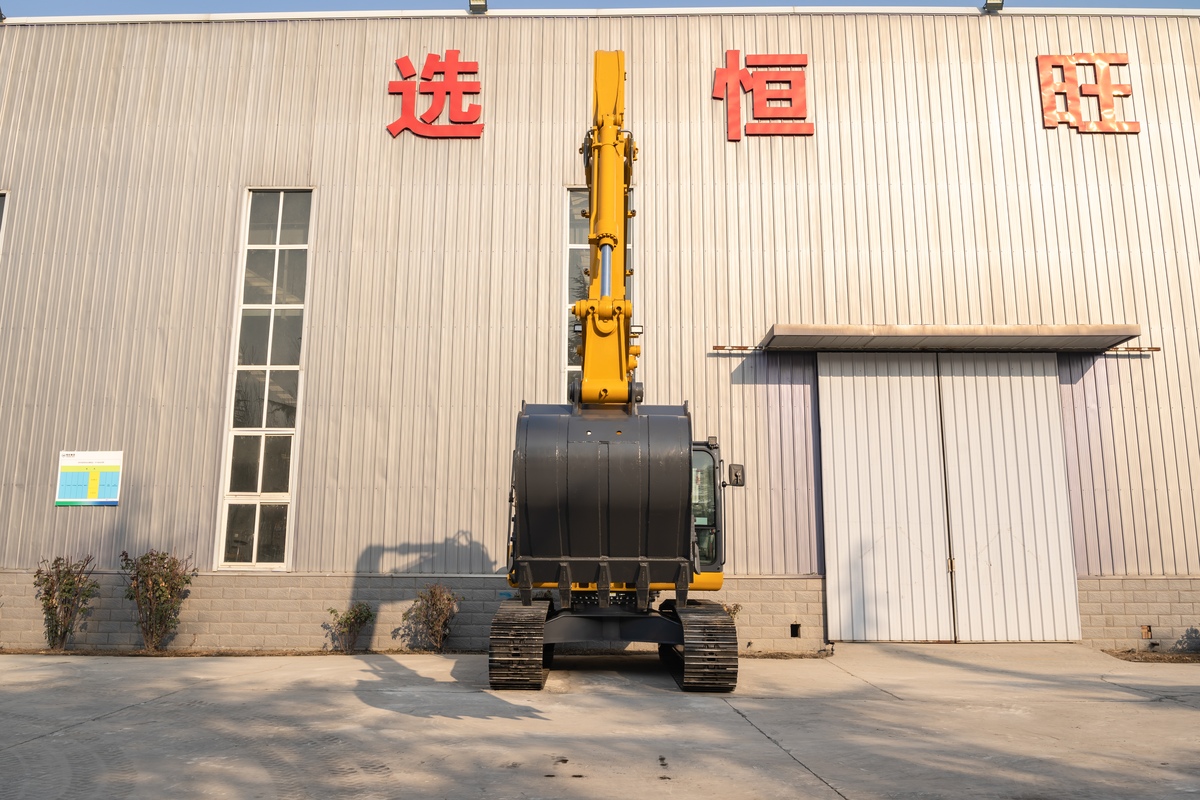

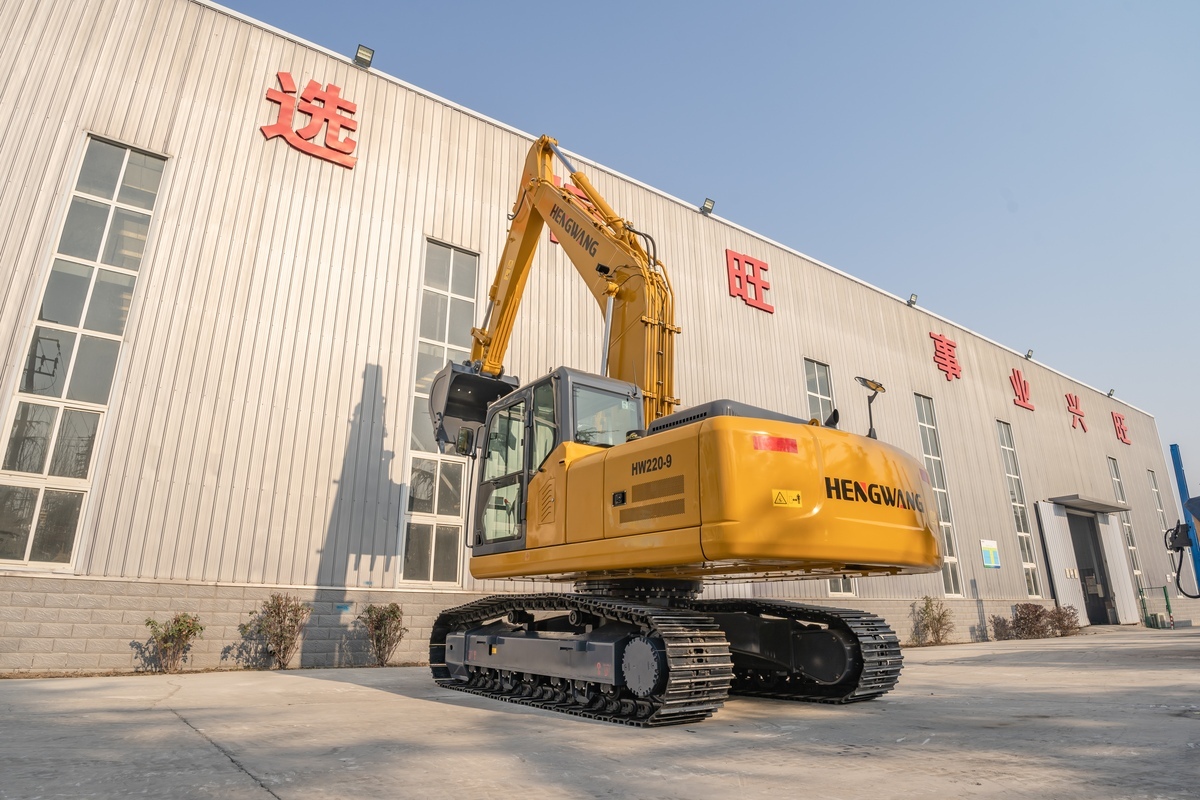

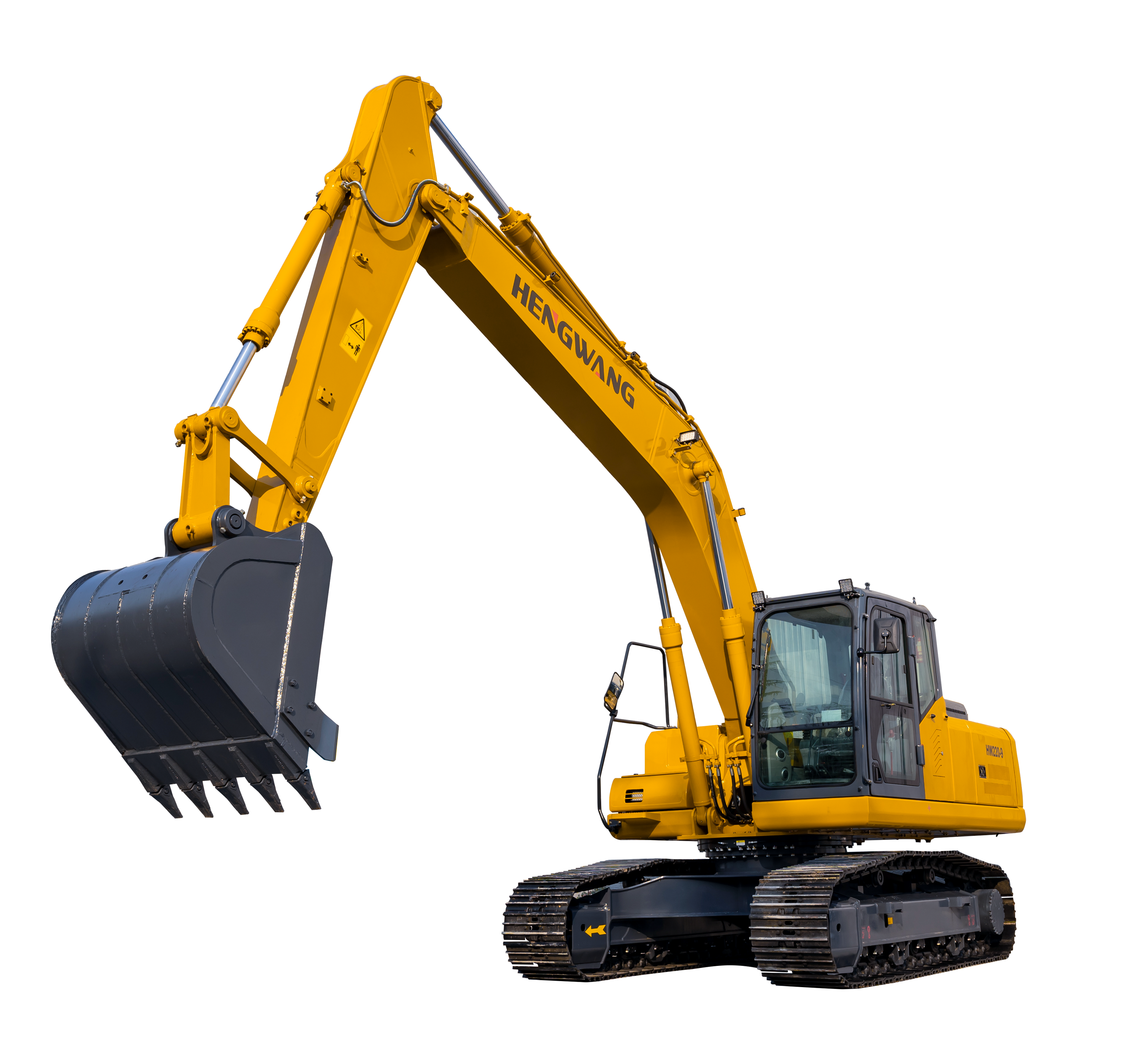

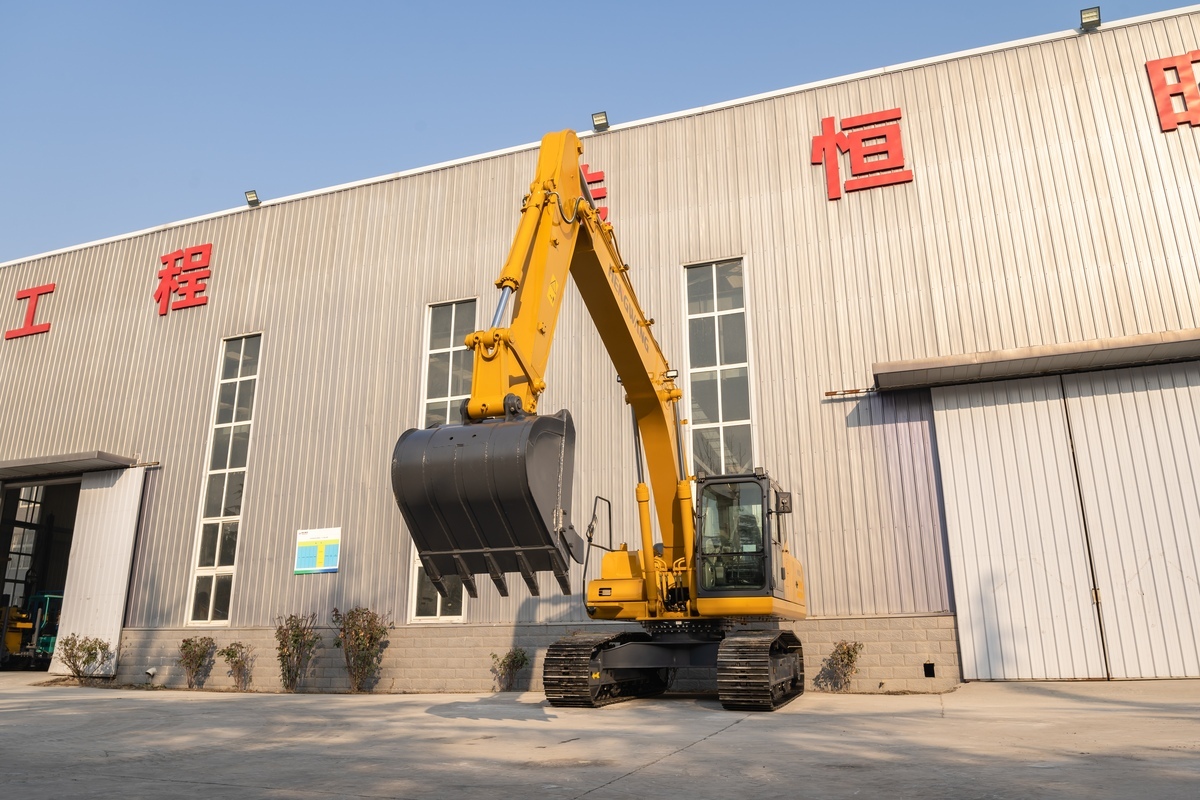

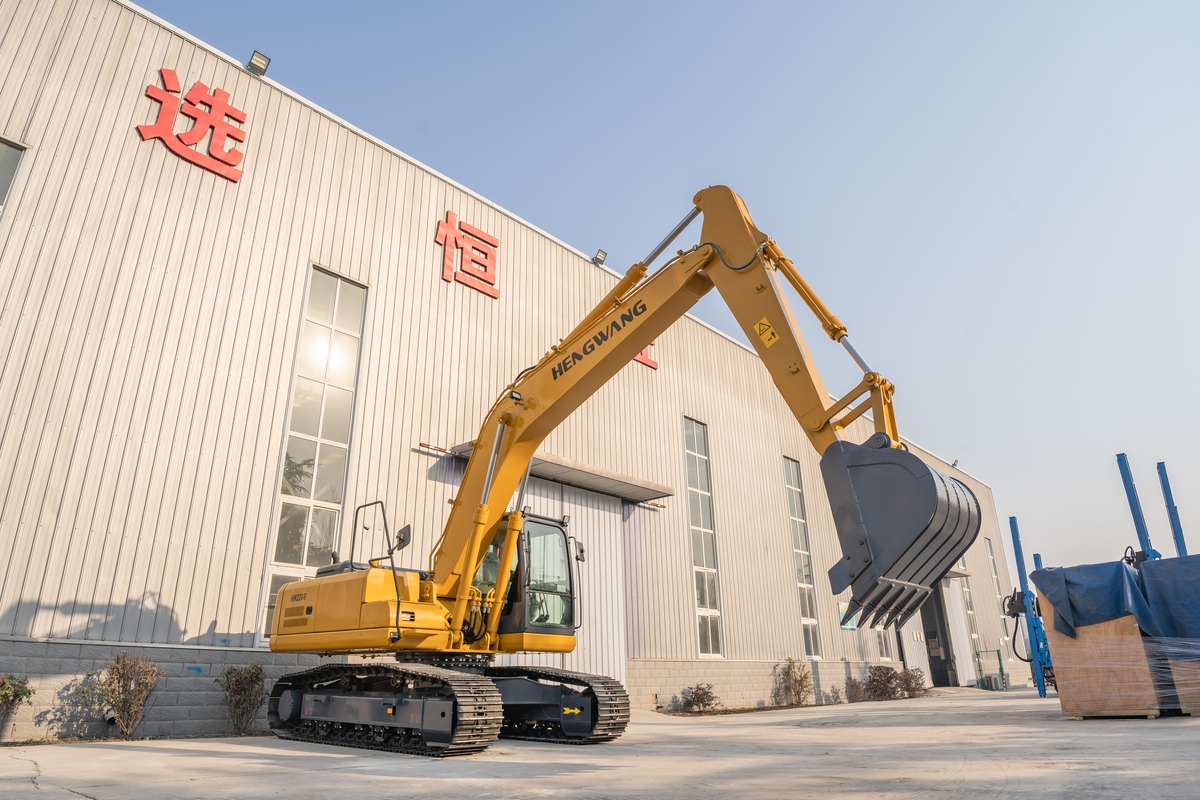

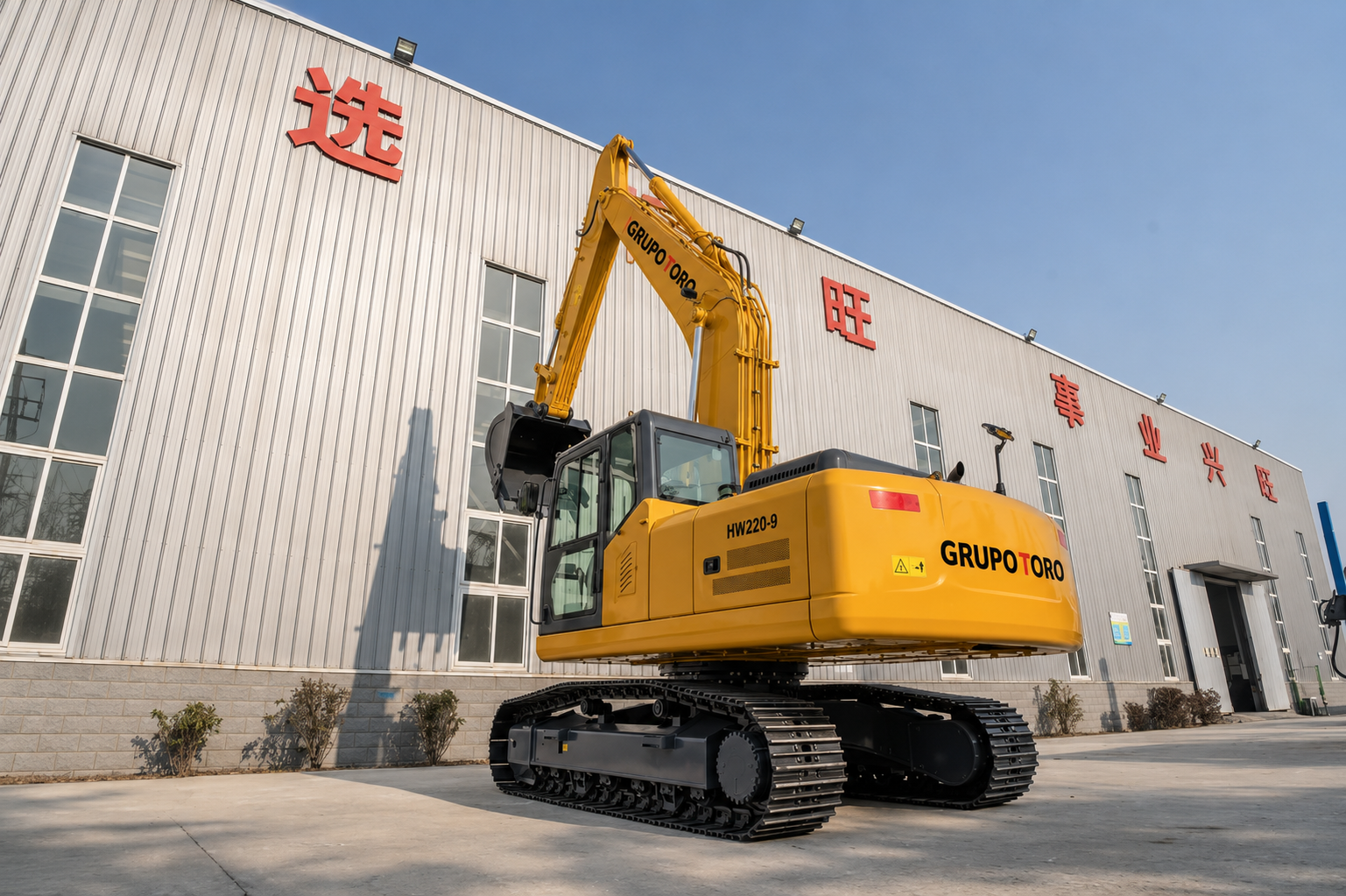

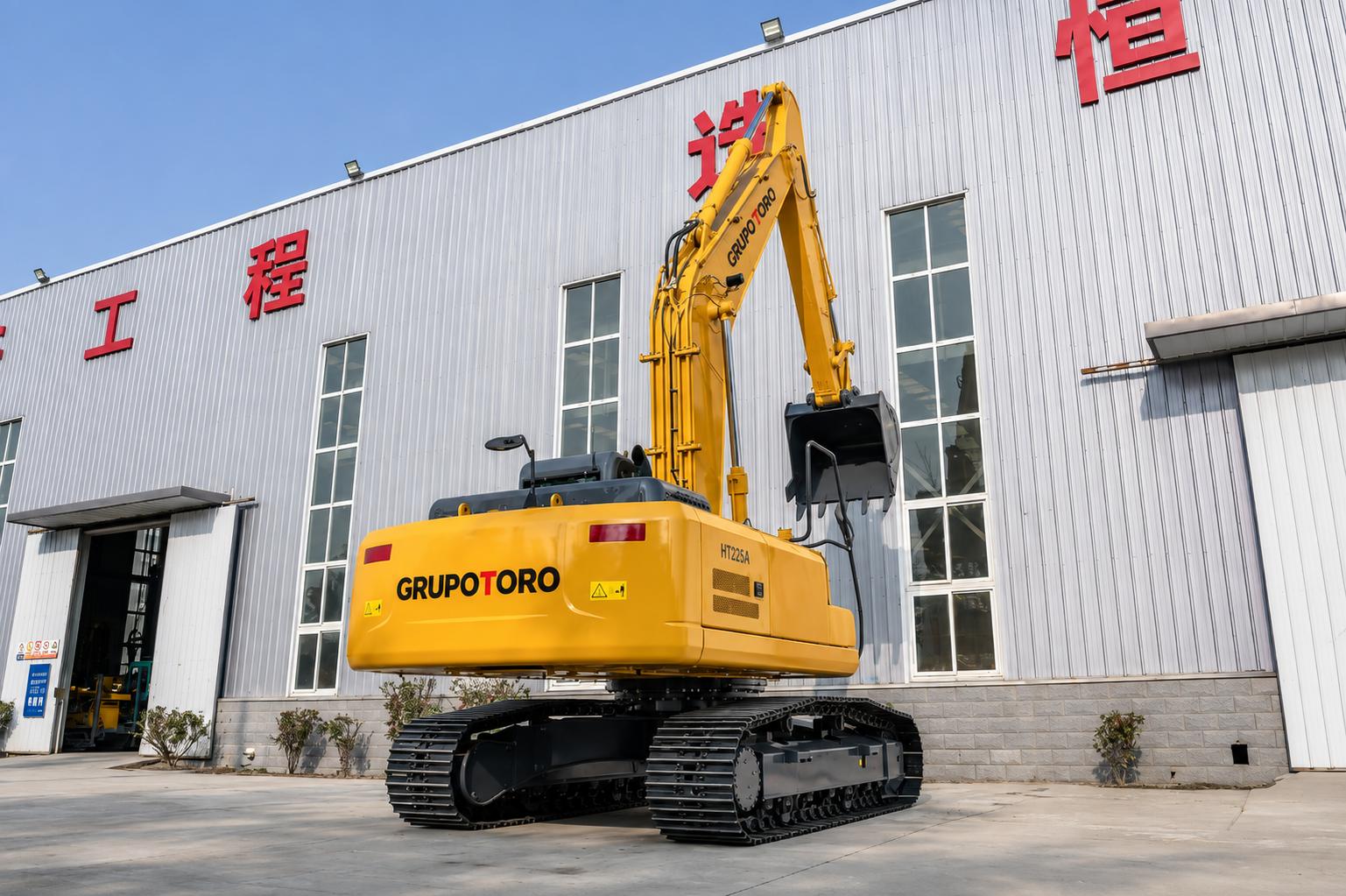

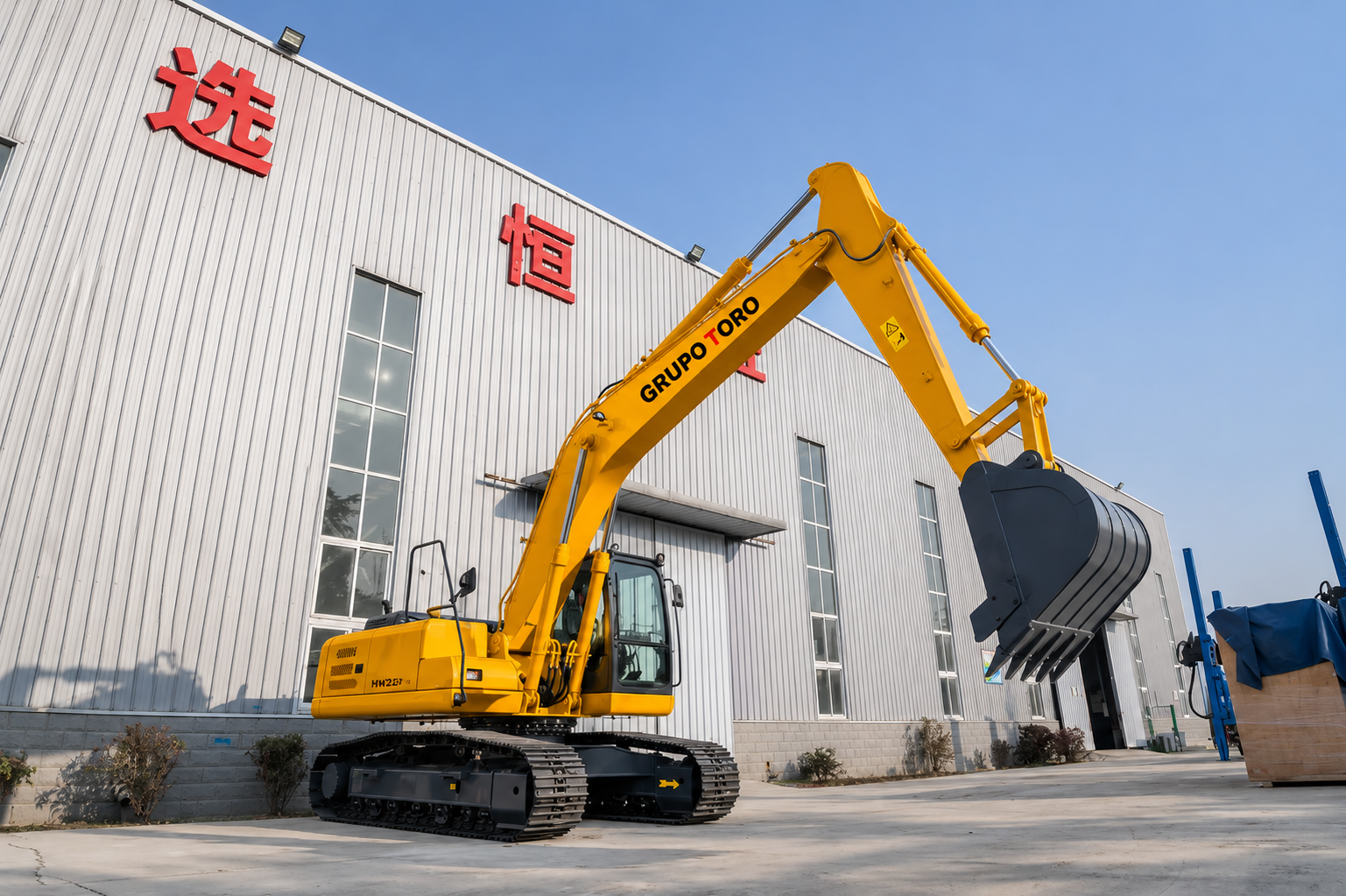

Crawler Excavator
HW-220
Operating weigh: 21.6T Bucket capacity: 1.05m³ Rated power: 133KW/173KW
- Operating weigh: 21.6T
- Bucket capacity: 1.05m³
- Rated power: 133KW/173KW
Specifications
- Model
- HW220-9A/B

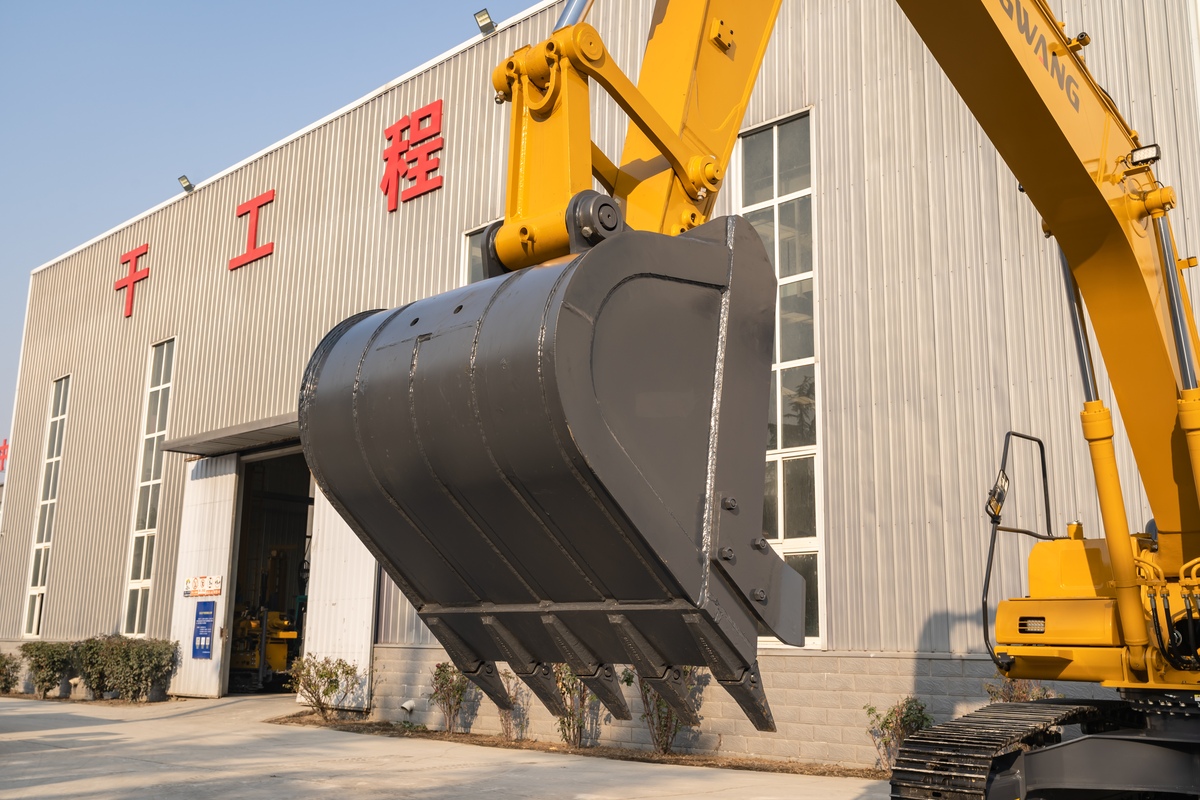

- Bucket Capacity
- 1.05m³
- Total Weight
- 21600kg
- Fuel Tank Volume
- 330L
- Brand and Model
- Cummins 6BTAA5.9-C178-II
- Power
- 133kw/2000rpm；118kw/2000rpm
- Intake Method
- High pressure common rail, inline turbocharged
- Fuel System Operation
- Electronic injection
- Emission Standard
- Tire 2/ Stage II;Euro 5
- Drive Mode
- Mechanical
- Main Pump Brand and Model
- HVME270/ Rexroth
- Main Pump Flow
- 228L×2min
- Rotary Motor Brand and Model
- Edi FSM130C
- Rotary Motor Working Pressure
- 25.5MPa
- Travel Motor Brand and Model
- Edi FTM40A
- Travel Motor Working Pressure
- 37
- Maximum Digging Height
- 10950mm
- Maximum Unloading Height
- 7190mm
- Maximum Digging Depth
- 6490mm
- Maximum Digging Radius
- 5915mm
- Arm Digging Force
- 109kN
- Bucket Digging Force
- 146kN
- Traction
- 214kN
- Rotating Speed
- 10.8r/min
The 220 type crawler excavator has a total weight of 21.8T/22.5T, a rated power of 118kw/124kw, and a bucket capacity of 0.93m³. It is widely used in municipal, water conservancy, highway bridge construction and other earthworks, as well as small-scale stone works such as crushed stone and gravel.Product Features:1. Customized imported engine with advantages of "low fuel consumption, low emission, low noise";2. Optimized fuel rate curve according to the operating characteristics of the excavator, reducing fuel consumption by more than 10% compared to the previous generation;3. The main pump has been rigorously tested in the market, durable and reliable, with stable displacement.Main Parameters:ModelHW220-9A/BBucket Capacity1.05m³Total Weight21600kgFuel Tank Volume330LBrand and ModelCummins 6BTAA5.9-C178-IIPower133kw/2000rpm；118kw/2000rpmIntake MethodHigh pressure common rail, inline turbocharged Fuel System OperationElectronic injection Emission StandardTire 2/ Stage II;Euro 5Drive ModeMechanicalMain Pump Brand and ModelHVME270/ RexrothMain Pump Flow228L×2minRotary Motor Brand and ModelEdi FSM130CRotary Motor Working Pressure25.5MPaTravel Motor Brand and ModelEdi FTM40ATravel Motor Working Pressure37Maximum Digging Height10950mmMaximum Unloading Height7190mmMaximum Digging Depth6490mmMaximum Digging Radius5915mmArm Digging Force109kNBucket Digging Force146kNTraction214kNRotating Speed10.8r/min
