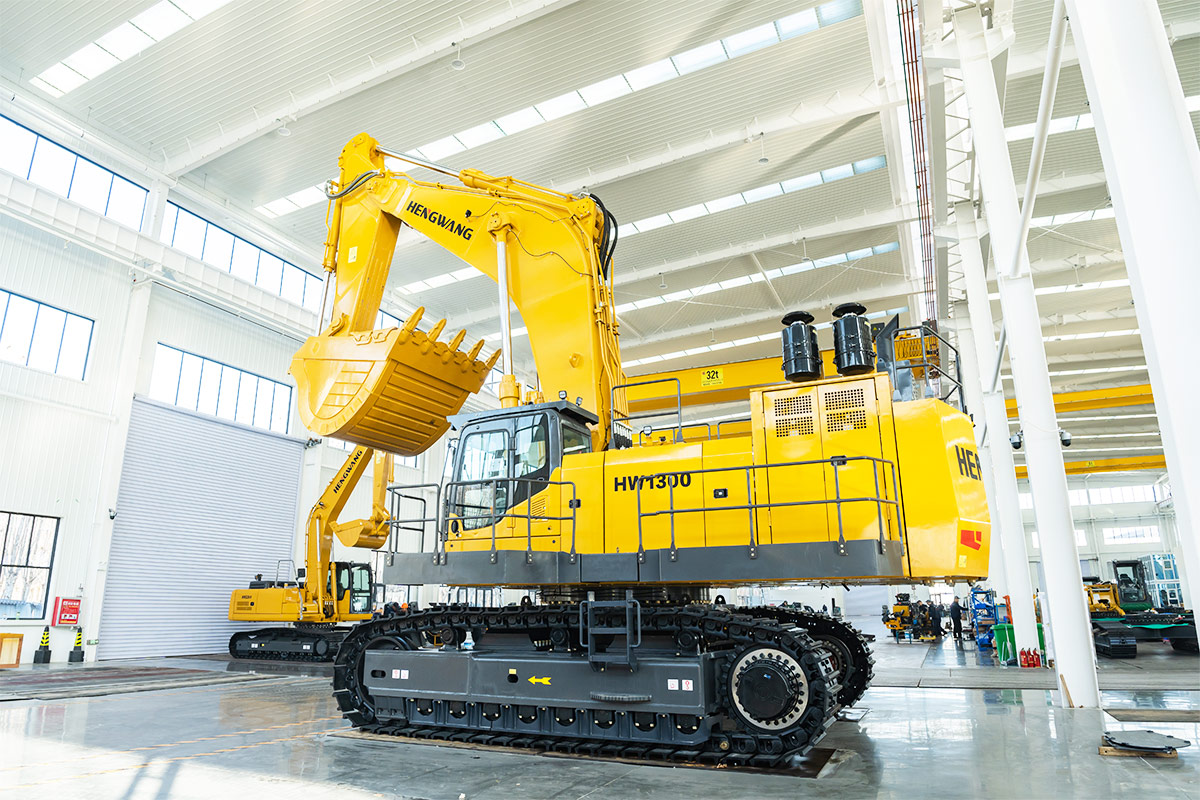

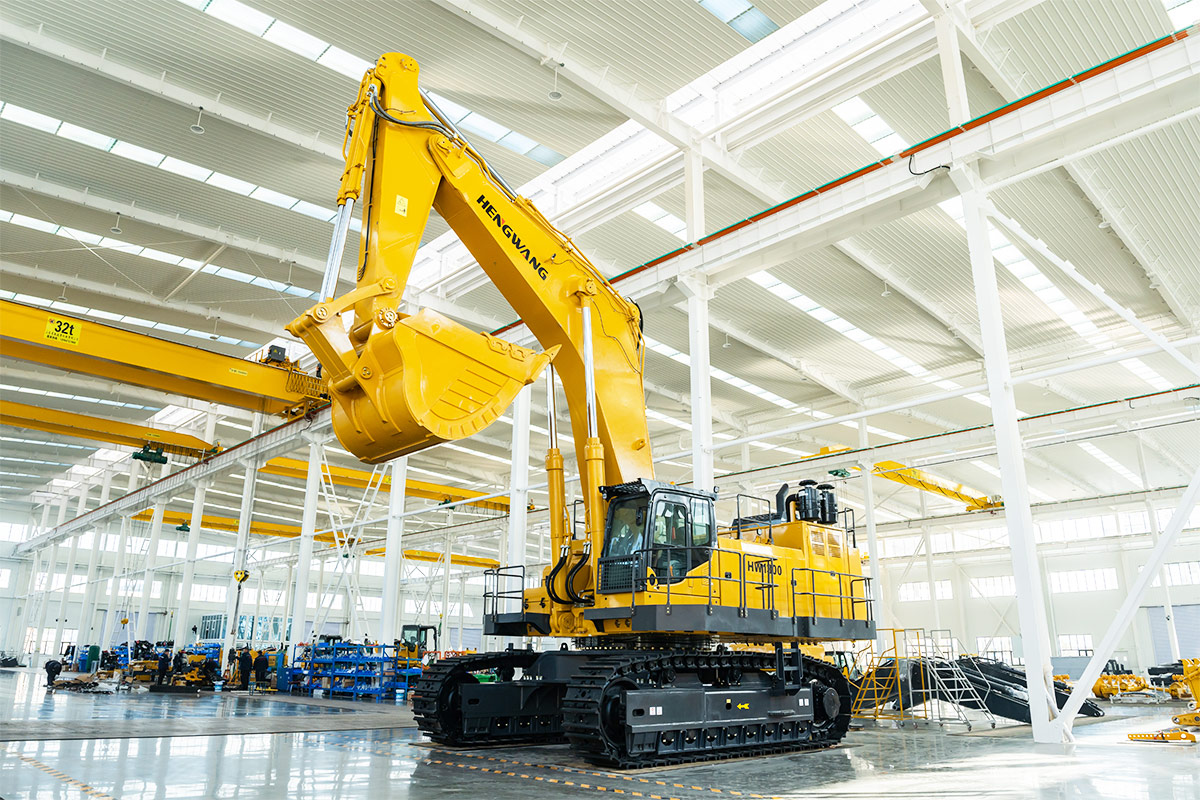

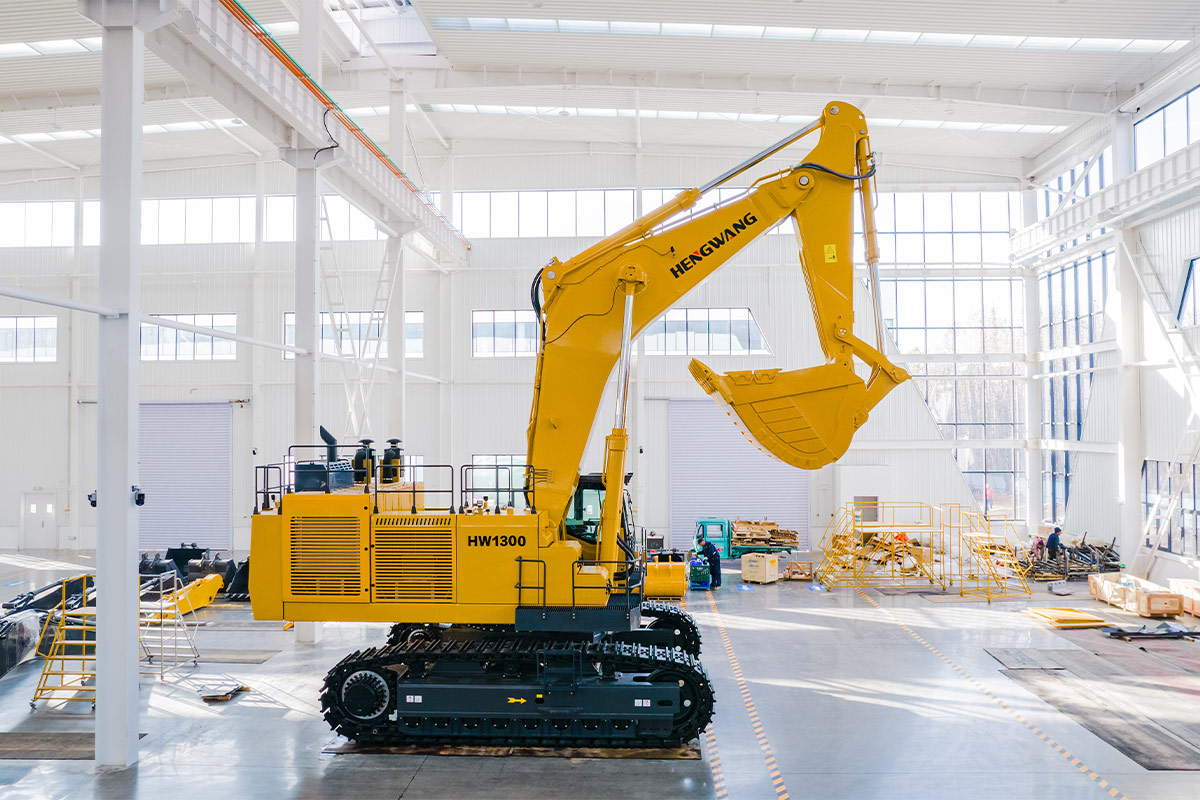

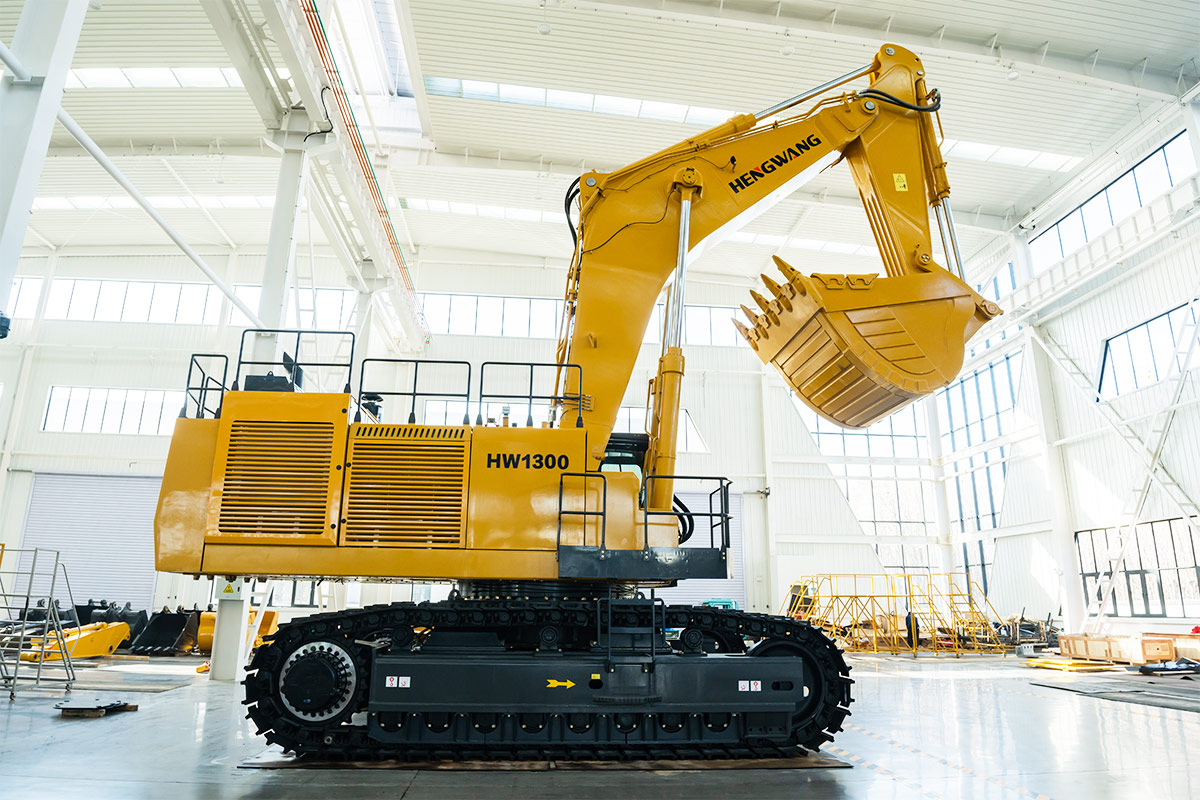

Crawler Excavator
HW1300
Power: 567KW Maximum Digging Height: 13000mm Maximum Unloading Height: 8450mm
- Power: 567KW
- Maximum Digging Height: 13000mm
- Maximum Unloading Height: 8450mm
Specifications
- Engine Brand
- Cummins
- Engine Model
- QSK23
- Type
- High pressure common rail, super-charged
- No. of cylinder
- 6x170x170
- Displacement
- 23mL/r
- Power
- 567KW/1350rpm
- Overall length
- 14840mm
- Ground contact length (Transpoation)
- 6500mm
- Overall height (to top of boom)
- 6264mm
- Overall width
- 5570mm
- Overall height (to top of cab)
- 3490mm
- Counter weight ground clearance
- 1900mm
- Ground clearance
- 1100mm
- Tail wing radius
- 4860mm
- Wheelbase
- 5000mm
- Track length
- 6425mm
- Track Gauge
- 3900mm
- Track width
- 4600mm
- Shoe width
- 700mm
- Distance from swivel center to tail
- 4860mm
- Max. digging height
- 13000mm
- Max. dumping height
- 8450mm
- Max. digging depth
- 7900mm
- Max. vertical digging depth
- 5025mm
- Max. Depth cut for 8 feet Level Bottom
- 8450mm
- Max. digging distance
- 14070mm
- Max. digging radius at ground level
- 13670mm
- Radius of gyration
- 4900mm
This product is a new generation mining excavator meticulously developed by Hengwang Group for the heavy-duty mining sector. It features a high-pressure, high-flow electronically controlled hydraulic system, specifically designed for demanding mining conditions such as stone, coal, and metal operations.Power System: The machine is equipped with a Cummins QSK23 engine, delivering a power output of 567 kW/rpm. With fast dynamic response, it is reliable and durable.Work Equipment: The structure of the work device is reinforced, with key support areas utilizing integral castings and forgings. The large digging force of the boom significantly reduces welding stress concentration and defects, thereby enhancing the lifespan of the working device.EngineEngine BrandCumminsEngine ModelQSK23TypeHigh pressure common rail, super-chargedNo. of cylinder6x170x170Displacement23mL/rPower567KW/1350rpmOverall dimensionsOverall length14840mmGround contact length (Transpoation)6500mmOverall height (to top of boom)6264mmOverall width5570mmOverall height (to top of cab)3490mmCounter weight ground clearance1900mmGround clearance1100mmTail wing radius4860mmWheelbase5000mmTrack length6425mmTrack Gauge3900mmTrack width4600mmShoe width700mmDistance from swivel center to tail4860mmWorking scopeMax. digging height13000mmMax. dumping height8450mmMax. digging depth7900mmMax. vertical digging depth5025mmMax. Depth cut for 8 feet Level Bottom8450mmMax. digging distance14070mmMax. digging radius at ground level13670mmRadius of gyration4900mm
