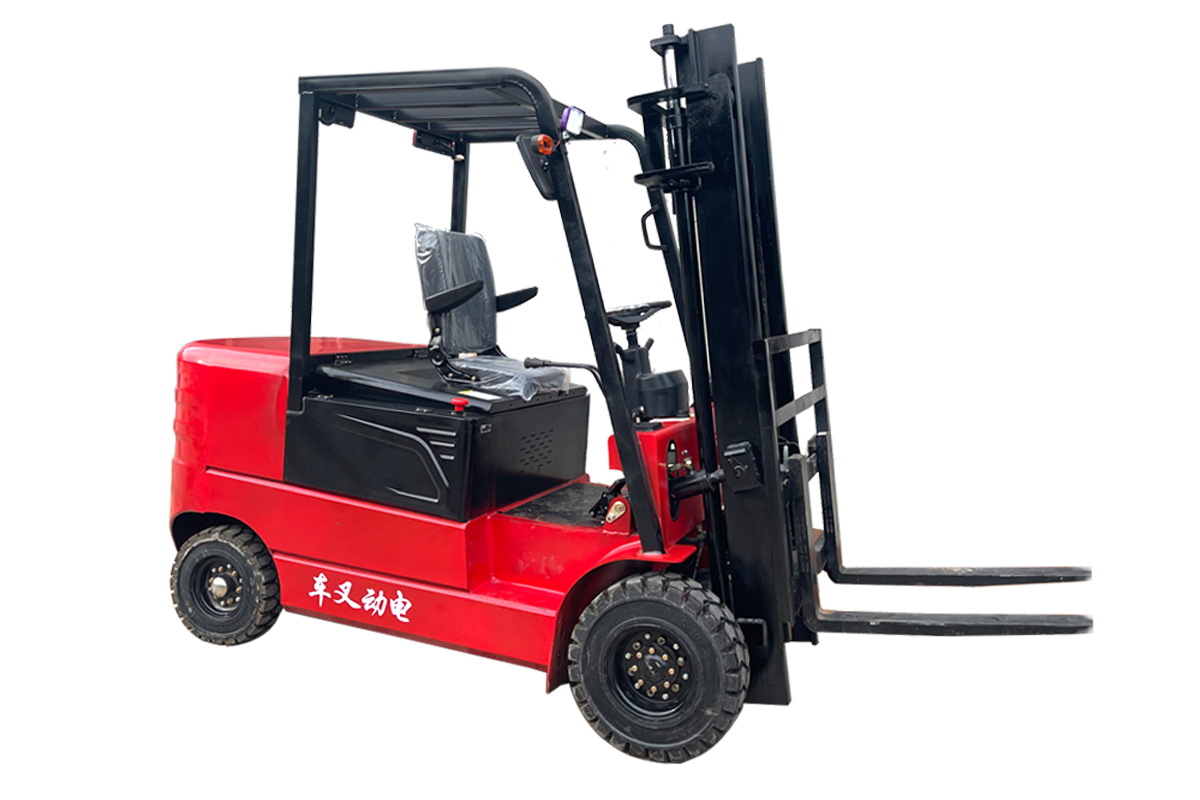

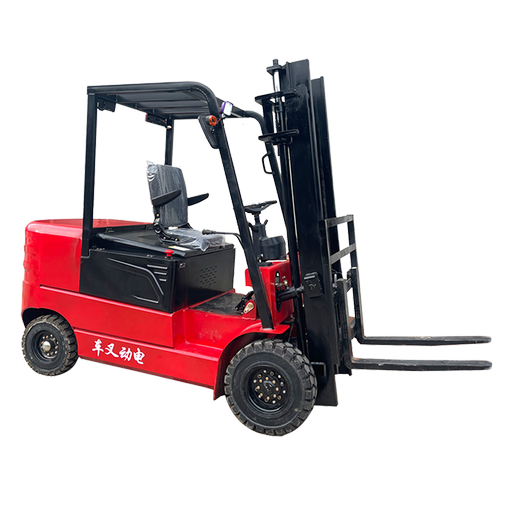

Carretilla elevadora
HW-2.6T
Powert: 42/55 HP Machine weight: 3100KG Rated lifting capacity:2600KG
- Powert: 42/55 HP
- Machine weight: 3100KG
- Rated lifting capacity:2600KG
Especificaciones
- Engine Model
- huichai/weifang 490
- Power
- 42/45
- Machine weight
- 3100
- size
- 2900*1300*2200
- Wheelbase
- 1800
- Tire distance
- 1350
- Ground Clearance
- 22
- Climbing grade (full load)
- 15
- Speed
- 20
- Minimum turning radius
- 2400
- Rated lifting capacity
- 2600
- Forks
- 1070
- Maximum adjustment of fork outer side
- 1000
- Load center distance
- 500
- Mast forward tilt angle
- 6
- Mast rear angle
- 12
- Standard lifting height
- 3
- Front tire
- 28*9-16/650-16
- Rear tire
- 600-9
Forklifts are industrial handling vehicles designed for the loading, unloading, stacking, and short-distance transportation of unitized palletized goods. Referred to as industrial vehicles by the International Organization for Standardization ISO/TC110, forklifts are commonly used for the transportation of large items in warehouses. They are typically powered by either internal combustion engines or batteries.The technical parameters of a forklift are used to indicate its structural features and operational performance. The key technical parameters include rated lifting capacity, load center distance, maximum lifting height, mast tilt angle, maximum travel speed, minimum turning radius, minimum ground clearance, as well as wheelbase and track width.Main parameters：HW-2.6TEngine Modelhuichai/weifang 490Power42/45HPMachine weight3100kgsize290013002200mmWheelbase1800mmTire distance1350mmGround Clearance22mmClimbing grade (full load)15°Speed20km/hMinimum turning radius2400mmRated lifting capacity2600kgForks1070mmMaximum adjustment of fork outer side1000mmLoad center distance500mmMast forward tilt angle6°Mast rear angle12°Standard lifting height3mFront tire28*9-16/650-16Rear tire600-9
