Grúa
HWDFXC16T
Lifting Capacity: 16 T Lifting Height: 35 m Power: 132 kW
- Lifting Capacity: 16 T
- Lifting Height: 35 m
- Power: 132 kW
Especificaciones
- Model
- HWDFXC16T
- Chassis model
- Dongfeng 4200
- Maximum lifting capacity
- 16000KG
- Boom type
- 8m, 5 sections
- Maximum lifting height
- 35m
- Motor power
- 15KW
- Hydraulic system
- Three-pump confluence system
- Rotation speed
- 0-3rap
- Engine model
- Yuchai YCS04180-68
- Engine powe
- 132KW (180hp)
- Tire model
- 10.00-R20
- Reducer model
- Wobbly handle planetary reducer
- Slewing support
- 1.5m extension
- Main frame structure
- Large six-hole
- Steering mode
- Hydraulic power assist
- Brake type
- Air brake
- Transmission
- Fast 8-speed gearbox
- Weight
- 18000KG
- Driver's cabin
- XCMG driver's cabin
- Emission standard
- National VI
- Wheelbas
- 4200
- Main hoist winch
- 16 T inclined-axis winch
- Auxiliary hoist winch
- 12 T inclined-axis winch
- Travel speed
- 85Km/h

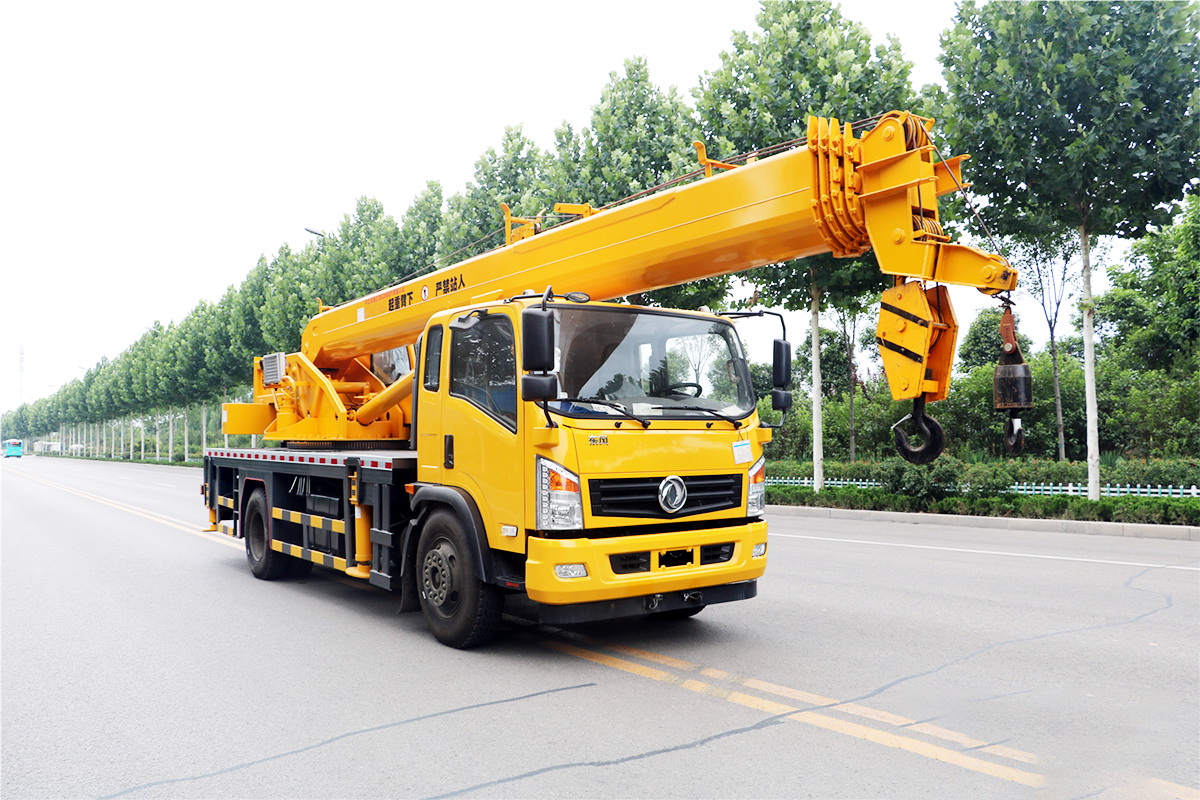

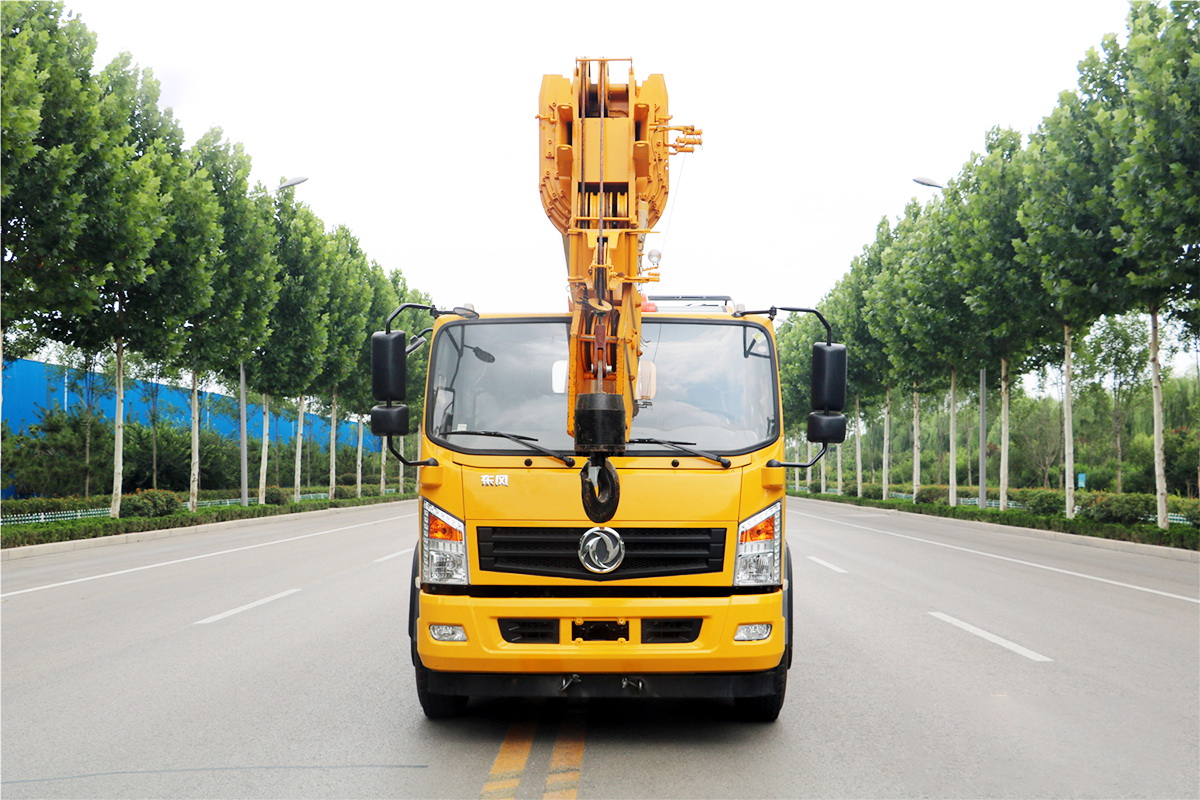

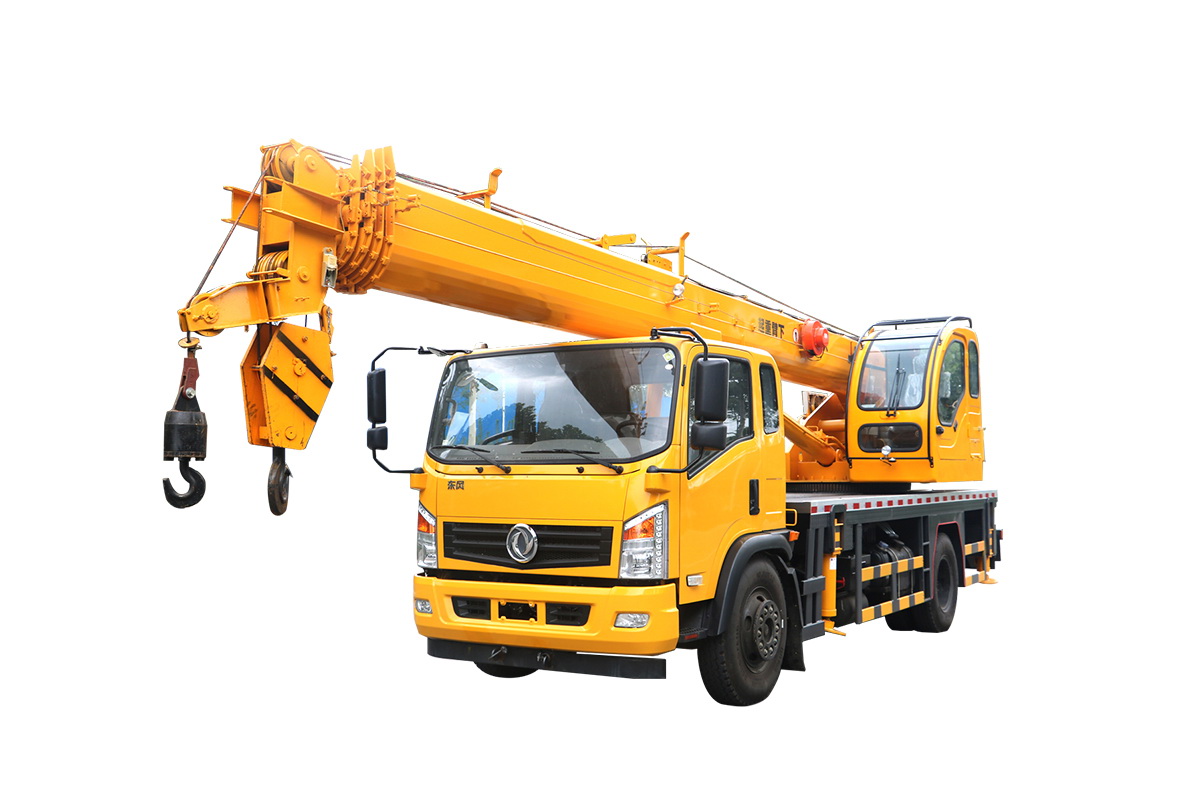

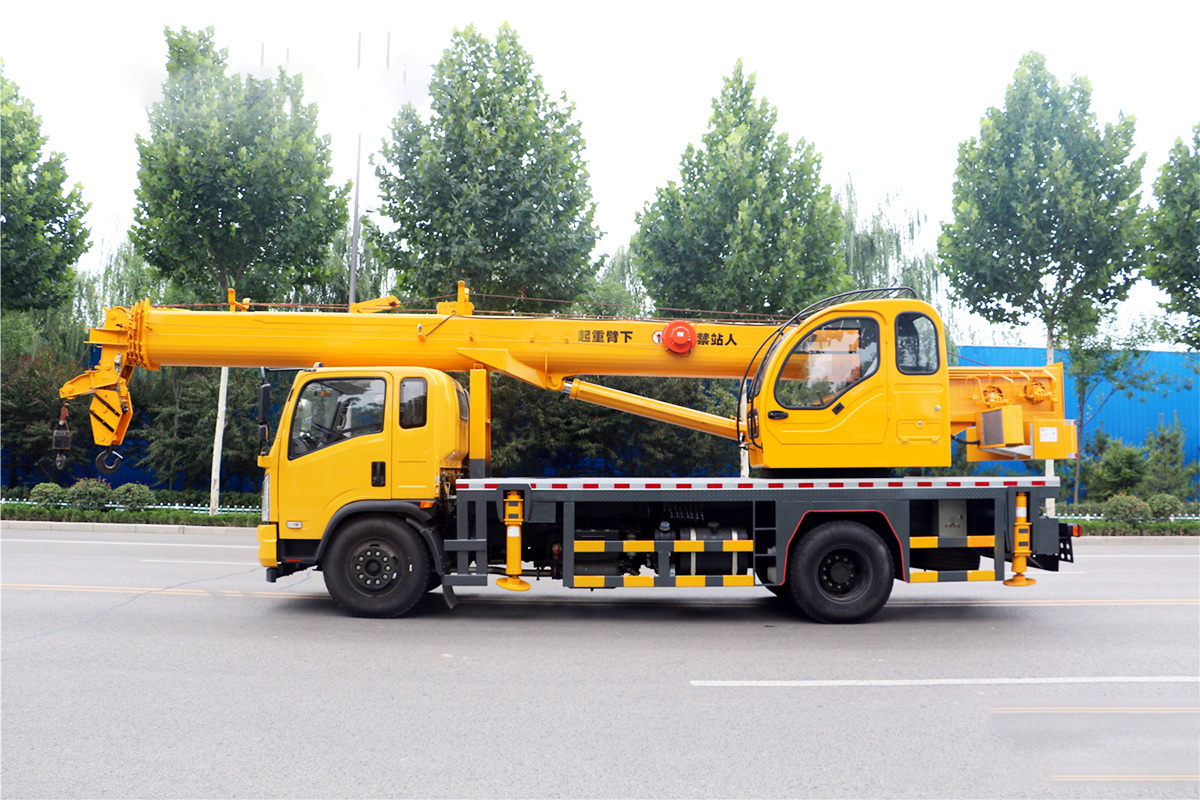

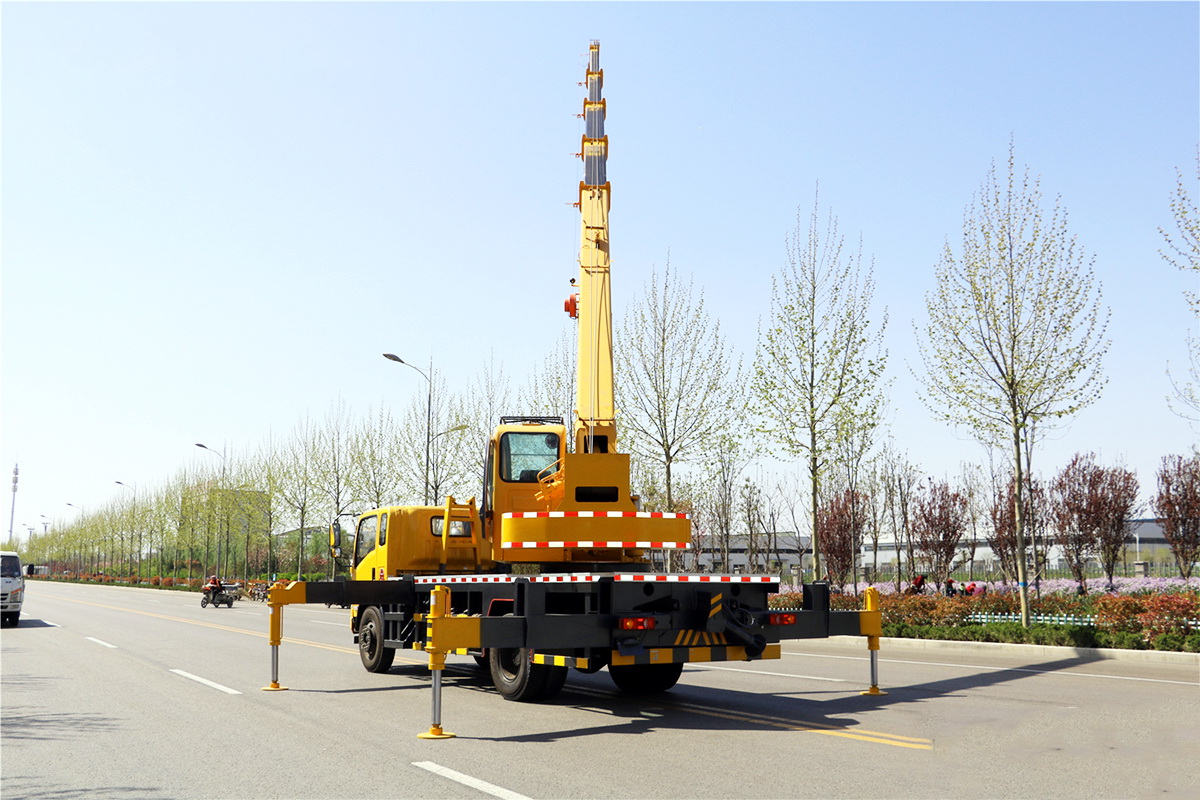

A truck crane is a type of crane mounted on a regular truck chassis or a specially designed truck chassis. The driving cab and the crane control cab are set separately. The chassis performance of the truck crane is equivalent to that of a cargo truck with the same total weight, meeting the technical requirements for road vehicles, and thus, it can travel smoothly on all types of roads. This type of crane typically has two control cabins, one for driving and one for operating, and it is necessary to extend the outriggers to ensure stability during operation.Main Parameters:ModelHWDFXC16TChassis modelDongfeng 4200Maximum lifting capacity16000KGBoom type8m, 5 sectionsMaximum lifting height35mMotor power15KWHydraulic systemThree-pump confluence systemRotation speed0-3rapEngine modelYuchai YCS04180-68Engine powe132KW (180hp)Tire model10.00-R20Reducer modelWobbly handle planetary reducerSlewing support1.5m extensionMain frame structureLarge six-holeSteering modeHydraulic power assistBrake typeAir brakeTransmissionFast 8-speed gearboxWeight18000KGDriver's cabinXCMG driver's cabinEmission standardNational VI Wheelbas4200Main hoist winch16 T inclined-axis winchAuxiliary hoist winch12 T inclined-axis winchTravel speed85Km/h
